This procedure is largely the same as in IOS.
Generate Keys:
ciscoasa(config)# crypto key generate rsa general-keys modulus 1024
INFO: The name for the keys will be:
Keypair generation process begin. Please wait...
Verify keys have been generated:
ciscoasa(config)# show crypto key mypubkey rsa
Key pair was generated at: 14:56:09 UTC Apr 5 2013
Key name:
Usage: General Purpose Key
Modulus Size (bits): 1024
Key Data:
30819f30 0d06092a 864886f7 0d010101 05000381 8d003081 89028181 00c0a355
Create trustpoint for root CA:
ciscoasa(config)# crypto ca trustpoint ORCA1-CA
ciscoasa(config-ca-trustpoint)# enrollment terminal
ciscoasa(config)# crypto ca authenticate ORCA1-CA
Enter the base 64 encoded CA certificate.
End with the word "quit" on a line by itself
-----BEGIN CERTIFICATE-----
-----END CERTIFICATE-----
quit
INFO: Certificate has the following attributes:
Fingerprint: e9fd8a22 e82c13ef 5db781a7 616ad113
Do you accept this certificate? [yes/no]: yes
Trustpoint CA certificate accepted.
% Certificate successfully imported
While IOS shows both MD5 and SHA1 fingerprints, ASA shows only MD5. My certificate template is configured to use SHA1 as hashing algorithm. In order to compare the thumbprints, I had to use an external hashing utility. I used MD5Summer. We need to hash the certificate in .CRT or binary .CER format (binary DER – Distinguished Encoding Rules - encoded).
Create truspoint for subordinate CA:
ciscoasa(config)# crypto ca trustpoint IssuingCA-DC1
ciscoasa(config-ca-trustpoint)# enrollment terminal
ciscoasa(config)# crypto ca authenticate IssuingCA-DC1
Enter the base 64 encoded CA certificate.
End with the word "quit" on a line by itself
-----BEGIN CERTIFICATE-----
-----END CERTIFICATE-----
quit
INFO: Certificate has the following attributes:
Fingerprint: 537adc87 22cc6e2b 07fdf2e0 18d8ba8b
Do you accept this certificate? [yes/no]: yes
Certificate validated - Signed by existing trustpoint CA certificate.
Trustpoint CA certificate accepted.
% Certificate successfully imported

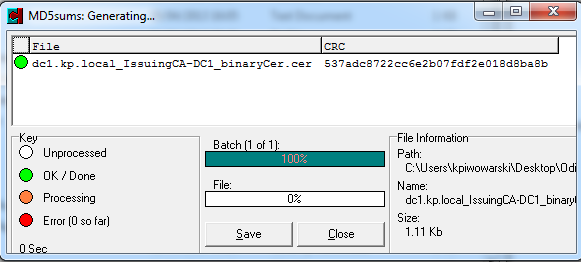

Verify the thumbprint:
Verify trustpoints:
ciscoasa# show crypto ca trustpoints
Trustpoint ORCA1-CA:
Subject Name:
cn=ORCA1-CA
Serial Number: 37a15821a55dd2864b62a67b6efd5429
Certificate configured.
Trustpoint IssuingCA-DC1:
Subject Name:
cn=IssuingCA-DC1
dc=kp
dc=local
Serial Number: 4d00000002924dec093140270b000000000002
Certificate configured.
Generate Certificate Signing Request (CSR):
ciscoasa(config)# crypto ca enroll IssuingCA-DC1
Would you like to continue with this enrollment? [yes/no]: yes
% Start certificate enrollment ..
% The fully-qualified domain name in the certificate will be: ciscoasa
% Include the device serial number in the subject name? [yes/no]: yes
% The serial number in the certificate will be: 123456789AB
Display Certificate Request to terminal? [yes/no]: yes
Certificate Request follows:
-----BEGIN CERTIFICATE REQUEST-----
-----END CERTIFICATE REQUEST-----
Redisplay enrollment request? [yes/no]: no
Sign the request:
C:\> certreq -submit -attrib CertificateTemplate:RouterCert .\asa1.csr asa1.pem
Import certificate:
ciscoasa(config)# crypto ca import IssuingCA-DC1 certificate
Verify certificates:
ciscoasa# show crypto ca certificates
Certificate
Status: Available
Certificate Serial Number: 6d00000040400187689d214e1e000000000040
Certificate Usage: General Purpose
Public Key Type: RSA (1024 bits)
Signature Algorithm: SHA1 with RSA Encryption
Issuer Name:
cn=IssuingCA-DC1
dc=kp
dc=local
Subject Name:
hostname=ciscoasa
serialNumber=123456789AB
CRL Distribution Points:
[1] http://dc1.kp.local/pki/IssuingCA-DC1.crl
Validity Date:
start date: 15:35:33 UTC Apr 5 2013
end date: 12:54:58 UTC Mar 14 2014
Associated Trustpoints: IssuingCA-DC1
CA Certificate
Status: Available
Certificate Serial Number: 4d00000002924dec093140270b000000000002
Certificate Usage: Signature
Public Key Type: RSA (2048 bits)
Signature Algorithm: SHA1 with RSA Encryption
Issuer Name:
cn=ORCA1-CA
Subject Name:
cn=IssuingCA-DC1
dc=kp
dc=local
CRL Distribution Points:
[1] http://dc1.kp.local/ORCA1-CA.crl
Validity Date:
start date: 12:44:58 UTC Mar 14 2013
end date: 12:54:58 UTC Mar 14 2014
Associated Trustpoints: IssuingCA-DC1
CA Certificate
Status: Available
Certificate Serial Number: 37a15821a55dd2864b62a67b6efd5429
Certificate Usage: Signature
Public Key Type: RSA (2048 bits)
Signature Algorithm: SHA1 with RSA Encryption
Issuer Name:
cn=ORCA1-CA
Subject Name:
cn=ORCA1-CA
Validity Date:
start date: 15:03:12 UTC Mar 13 2013
end date: 15:13:12 UTC Mar 13 2023
Associated Trustpoints: ORCA1-CA
